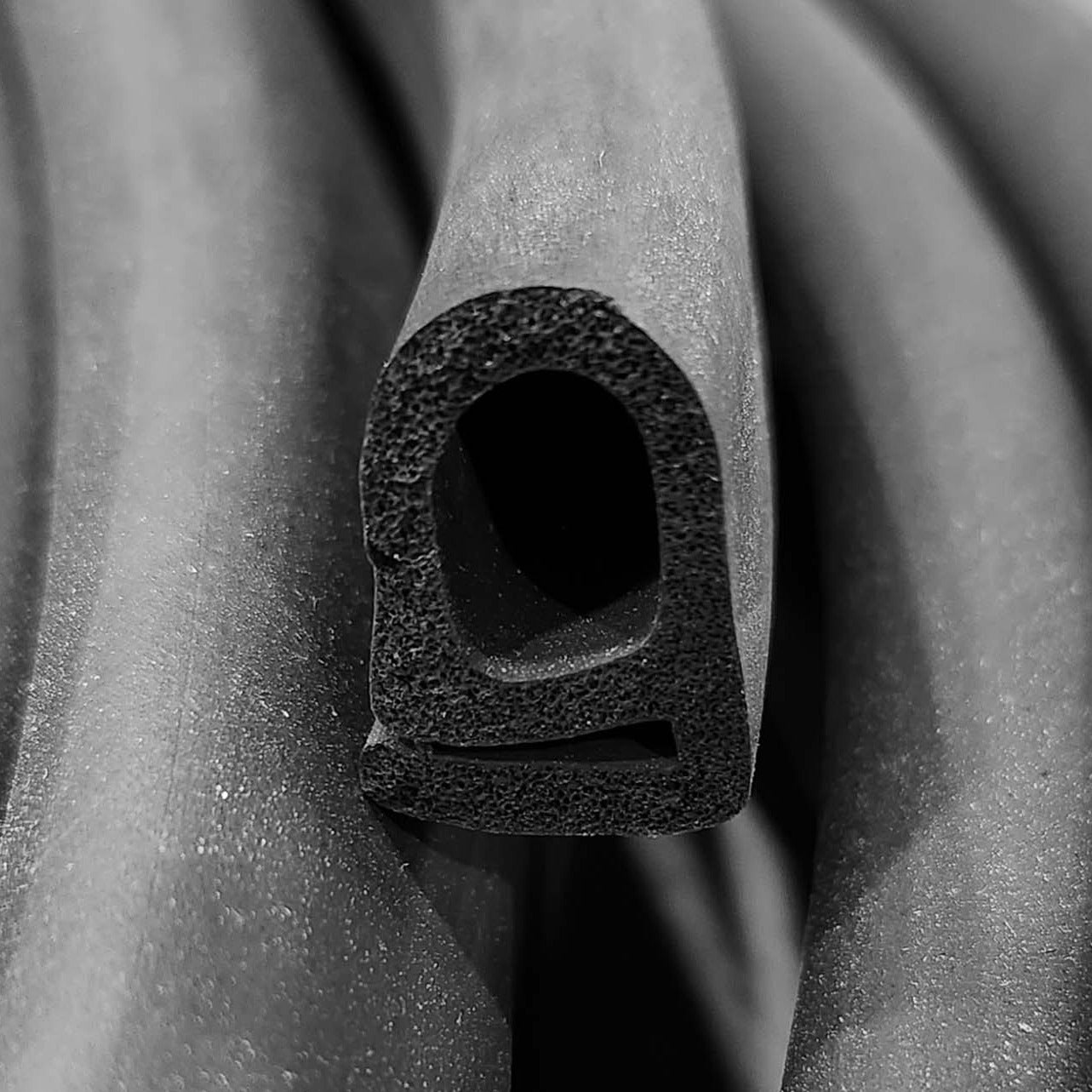

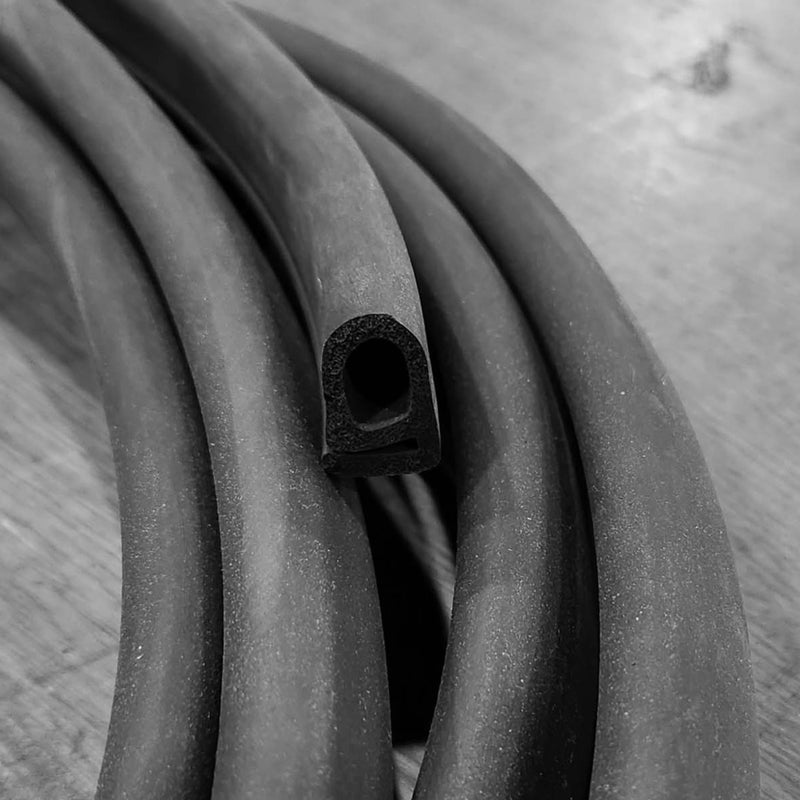

The 39-159R (B169) Door Seal is an 'E' Shape seal composed of completely EPDM sponge rubber - a strong durable material which will still be able to conform to a seal.
Unlike the 'E' Shape, this particular seal is affixed by a glue adhesive not screwed down. The 'bubble' at the top is where the door closes onto, and the slot at the bottom fixes onto the stationary surface (with a glue adhesive) of which the door closes onto.
The height of this seal is 20mm, the width is 12mm and the gap is 2mm.
Disclaimer: There is a manufacturing tolerance of +/- 1/2mm. Images are a guide only.
Need glue to go with this product? No problem! We stock several different types of adhesives to cover a wide range of applications. Click here for more information.
